Discription：
Surface grinding wheel uses high-quality materials to ensure precise contours during the grinding process, achieving high consistency in a single step. It is widely used in workpiece surface machining, gear processing, precision molds,tool manufacturing, bearings, and other applications.
Features:
★ Improved grinding performance through artificial porosity for high removal efficiency
★ Optimal wear and tear achieved through special, high-concentration sintered alumina, extending grinding wheel life
★ Reduce grinding time by 30% and extend dressing cycles by 10 times
★ Extremely high dimensional accuracy
★ Uncured for superior grinding performance without coolant contamination
★ Utilize the optimal combination of our bond, abrasive, and microstructure for immediate success
Technical Parameters:
| Outer Diameter | 10 - 110mm |
| Thickness | 3 - 75mm |
| Binder | V321, VT |
| Speed | 35 - 80m/s |
| Abrasive and particle size range | WA： #36 - #400 |
| Abrasive and particle size range | PA ： #36 - #220 |
| Abrasive and particle size range | SA ： #36 - #220 |
| Abrasive and particle size range | A ： #36 - #220 |
| Abrasive and particle size range | GC： #36 -#220 |
| Common Size |
20×T×6 T：3-32mm 25×T×10 T：3-40mm 30×T×10 T：3-50mm 35×T×10 T：3-50mm 40×T×10 T：3-50mm 45×T×16 T：5-50mm 50×T×16 T：6-63mm 60×T×20 T：6-63mm 80×T×20 T：6-63mm 110×T×20 T：6-75mm |

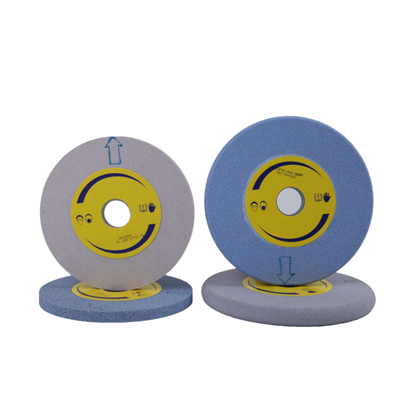

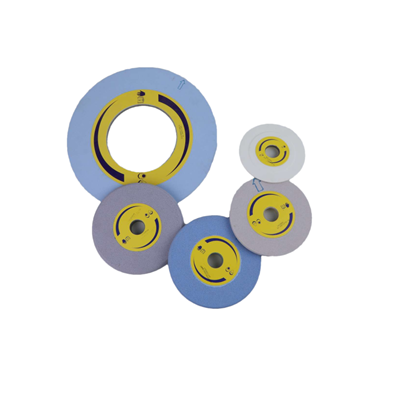

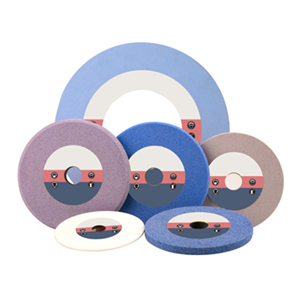

Photos:
