Essential Guide to MDF Refiner Plates: Design, Operation, and Maintenance

Essential Guide to MDF Refiner Plates: Design, Operation, and Maintenance

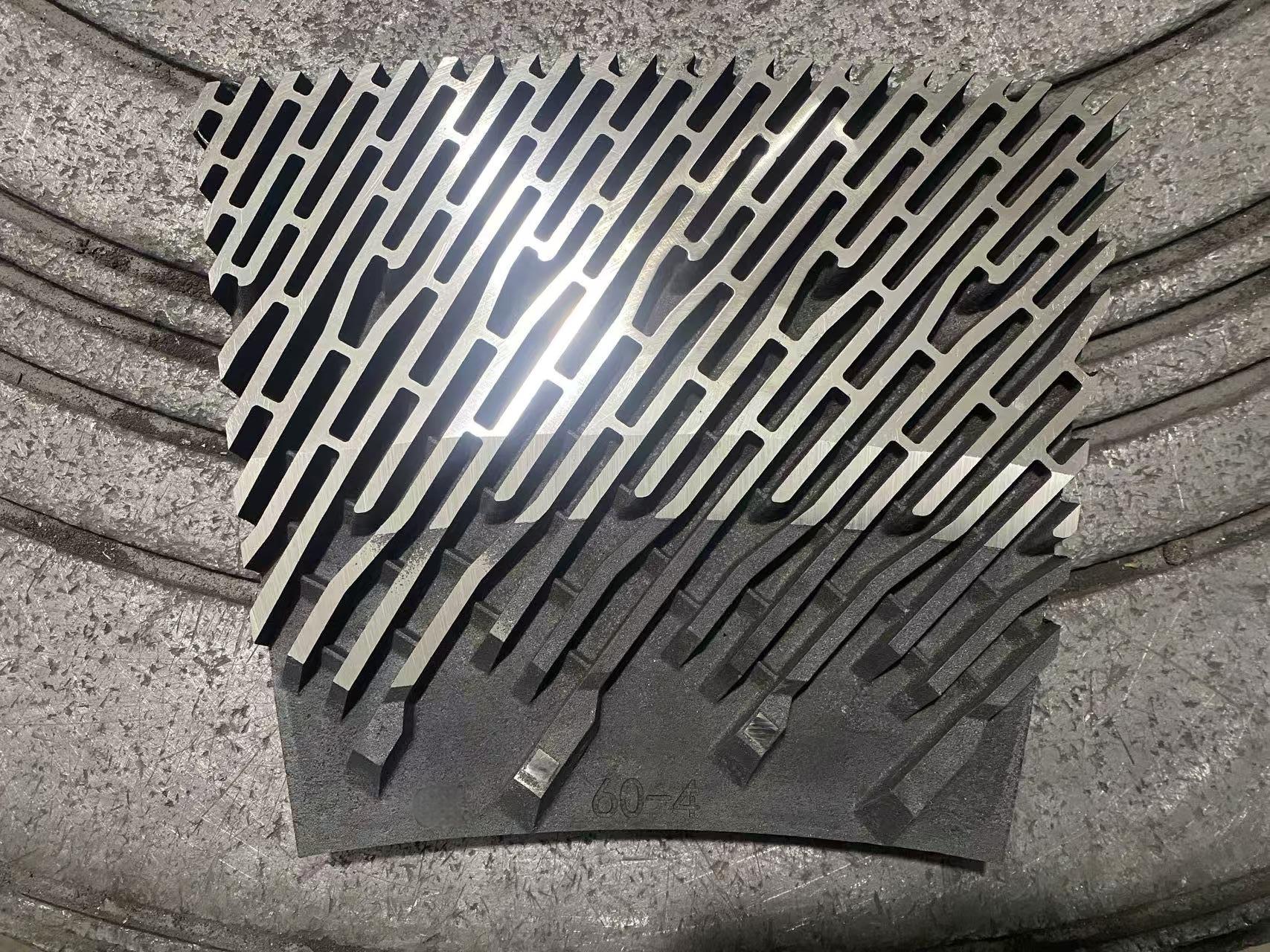

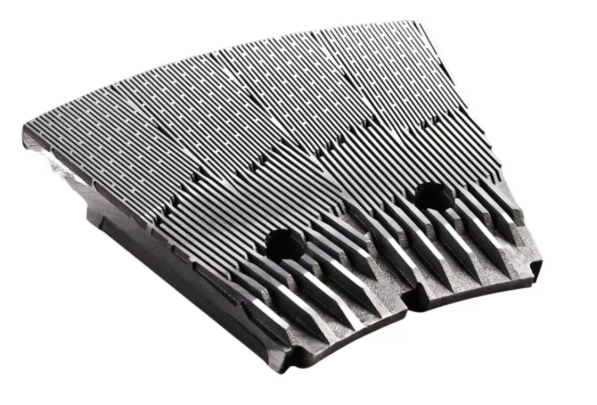

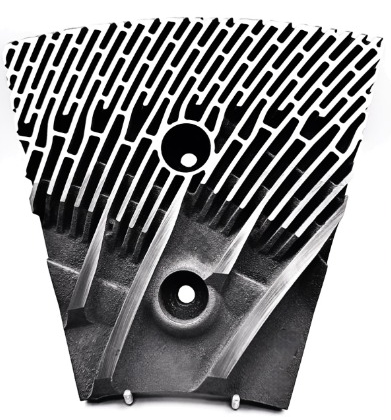

     Within medium-density fiberboard production lines, refiner plates (also identified as refiner segments) represent vital wear components operating within the defibrator unit. Secured onto matching rotor and stator assemblies, these metal plates exert mechanical shear forces to convert raw wood chips into cohesive, uniform fiber networks.

The Four Stages of Wood Defibrating
①Thermal Conditioning: Wood chips undergo high-temperature steam pre-treatment to soften internal lignin structures.

②Mechanical Separation:

Interlocking bar and groove profiles create intense compression, friction, and shear forces between high-speed rotating and stationary surfaces.

③Refiner Gap Calibration:

Fine adjustments to the clearance between plates ensure consistent fiber sizing and control overall kilowatt-hour per ton energy consumption.

④Downstream Integration:

The discharged fiber streams proceed directly into resin dosing systems, flash dryers, mechanical formers, and press lines.

Tooth Profile Dynamics and Alloy Selection

①Selecting proper tooth profiles directly affects operational performance:

②Bar Dimensions: Narrower bars produce finer fibers required for high-density surfaces.

③Groove Channels: Channel depth regulates volumetric throughput and steam escape pathways.

④Spiral Configurations: Angled grooves control material residence time and mechanical retention.

To withstand severe abrasive wear and corrosive steam environments, refiner plates are manufactured using specialized high-chromium alloy steels treated for high impact resistance.

Maintenance Strategies for Maximum Lifespan
Operational stability requires routine monitoring of:

①Gradual tooth profile degradation and wear thickness

②Specific energy consumption trends (kWh/tonne)

③Unusual structural vibration and bearing temperature shifts

④Timely replacement prevents fiber shive formation and avoids unnecessary energy losses.

HUATAO delivers custom refiner segment designs engineered around your raw material profiles and throughput requirements.
