Spiral Blade Forming Machine

Specifications

HUATAO supply spiral blade forming machine with max dia 2400mm and max thickness 60mm.

Click directly to send a message via WhatsApp

Send an Inquiry

A^-A⁺

Description Send an Inquiry

Description：

Spiral Blade Forming Machine is equipment to produce screw blades, pressing carbon steel, 304SS, 201SS, HARDOX steel, etc.

Widely used in cement, chemistry, building materials, food industry as key parts of screw conveyors for powder and pellets.

Specification:

Model	HT120	HT130	HT140	HT-150	HT-160	HT-180	HT-240	HT-280	HT-330
Voltage	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz
Weight	≈0.8T	≈0.9T	≈1.2T	≈1.3T	≈1.8T	≈2.3T	≈3.6T	≈8T	≈11T
Size	20004001400mm	21504501400mm	24505001450mm	26005001550mm	26005001550mm	28506001650mm	30006001750mm	50008501850mm	54009601850mm
Thickness	2~12mm	2~15mm	2~20mm	2~20mm	2~25mm	2-30mm	2-35mm	2-40mm	2-50mm
Inner Dia	>20mm	>20mm	>32mm	>48mm	>48mm	>51mm	>63mm	>89mm	>168mm
Outer Dia	<400mm	<500mm	<500mm	<700mm	<680mm	<1000mm	<1200mm	<1600mm	<2400mm
Mould Height	200mm	250mm	260mm	350mm	350mm	500mm	600mm	800mm	1200mm
Pitch	100-400mm	100-500mm	180-600mm	180-600mm	180-500mm	180-900mm	180-1000mm	240-900mm	240-900mm
Power	3kw	3kw	4kw	4kw	5.5kw	5.5kw	11kw	18.5kw	18.5kw
Oil Tank	36L	60L	100L	100L	120L	120L	180L	240L	320L
Oil Size	500300250mm	500300400mm	500500400mm	600500400	600500400	600500400	600500500	800600500	900900500
Pressure	24T 20Mpa	24T 20Mpa	36T 20Mpa	36T 20Mpa	48T 20Mpa	68T 20Mpa	120T 20Mpa	180T 20Mpa	260T 20Mpa

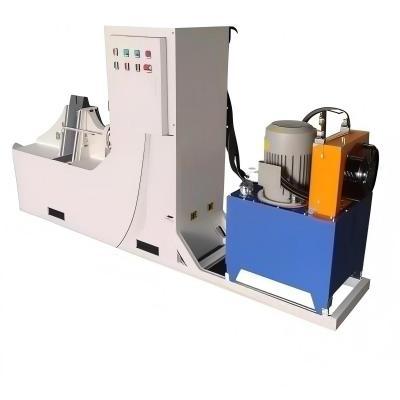

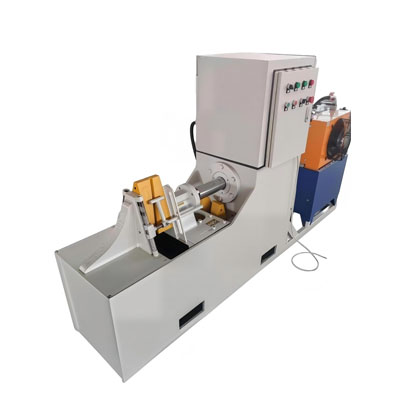

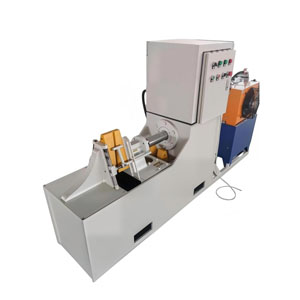

Photos:
