Refiner Plates for Zhongfoma Sufoma Defibrator MDF Manufacturing

China Zhongfoma (formerly Sufoma) is an excellent manufacturer from China in complete MDF production lines for engineered wood panels/fiberboards.

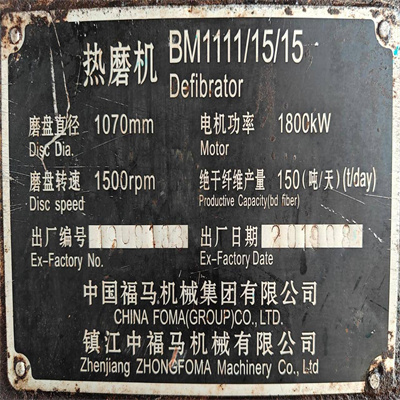

The BM Series defibrator are widely used in HDF & MDF production lines, as well as in the pulp and paper industry. Currently, there are six models with disc sizes ranging from 42", 44", 48", 50", 54" to 58", supporting annual production capacities from 50,000 to 200,000 m³ of MDF/HDF.

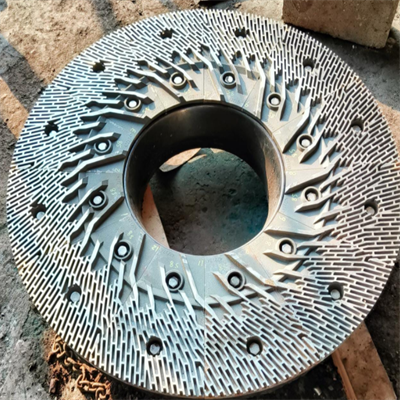

Features for Huatao Refiner Disc

1.Engineered for High-Performance Grinding

Precision-crafted alloy steel composition ensures superior wear resistance in continuous MDF/HDF production

Advanced heat treatment technology extends operational lifespan by 30-40% compared to standard plates

2.Optimized Fiber Quality Output

Proprietary groove pattern design produces ideal fiber length distribution for enhanced board strength

Micro-precision machining maintains consistent fiber quality throughout the plate service life

3.Energy-Efficient Operation

Hydrodynamic flow channels reduce power consumption by up to 15% versus conventional designs

Balanced weight distribution minimizes vibration for smoother, lower-energy operation

4.Custom Configuration Capabilities

Available in all BM Series compatible sizes (42"-58") with material grade options

Special tooth geometries can be tailored for specific wood species or production requirements



Technical Parameters

Material	High Chrome Alloy Steel,Alloy
Refiner Disc Diameter	42-58 Inch
Production Technology	Casting and Grinding
Hardness	63 HRC
Screw type	M14
Screw holes	2

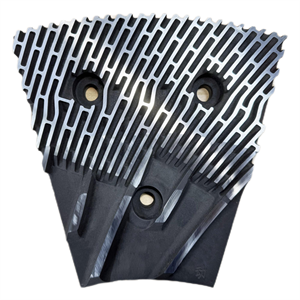

Total quantity of segment per one circle	12
Total quantity of segments per set	24 per (one rotor and one stator)
Suitable Refiner Model	Zhongfoma BM1111,BM1112,BM1114,BM1115,etc
