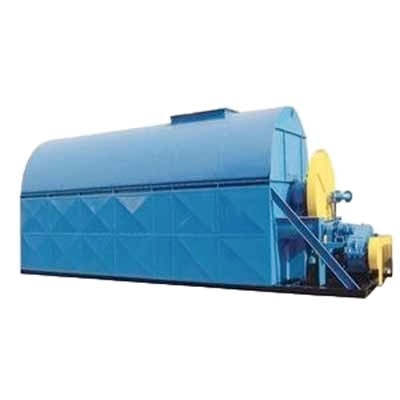

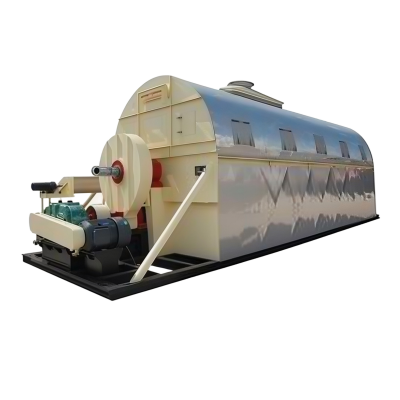

Tube Bundle Dryer

Specifications

Special Features:
1. Indirect heating,no contact between product and heating medium
2. Saturated steam of 6 bar/g as heating source
3. Low xygen drying
4. Compact construction
5. Tube bundle constructin made of mild steel or stainless steel
6. Housing and vapour extraction of stainless steel
7. CE certification with Machinery Directive, Low-voltage Directive,Pessure Directive
8. ASME design and manufacture is possible

Click directly to send a message via WhatsApp

Send an Inquiry

A^-A⁺

Description Send an Inquiry

Description:

The HTGZG Tube Bundle Dryer is a contact-type dryer featuring a stationary outer shell that houses a rotating bundle of heated tubes equipped with material lifters. Steam enters the tubes via a rotary joint, transfers heat, and exits as condensate. Moisture within the material absorbs heat from the tubes, vaporizes, and is subsequently expelled by an exhaust fan. Inside the tube bundle, the material is lifted by the rotating lifters, falls evenly onto the outer surfaces of the heated tubes, and is continuously advanced from the inlet to the outlet by the lifters to complete the drying process.

Fields of Application:

1. Alcohol/Ethanol industry: Grain sludge, DDGS
2. Brewing industry: Spent grains, mixture of spent , grains/yeast
3. Chemical and plastics industry: Granulates
4. Condition of broken soya beans, sun flowers, rapeseed and other oil seeds
5. Wood processing industry: wood chips
6. Starch industry: Maize germs, maize fibres,maize gluten,maize fibre with Syrup,
7. Wheat fibre with bran and syrup

Parameter:

Model	Dimension(mm)			Inlet and Outlet				Equipped
	L	W	H	Speed(r.p.m)	Water Outlet	Suction Pipe Dia	Air Inlet	Power(kw)
HTGZG300	9910	2472	3250	5-8	ZG3”	φ450	ZG2.5”	22
HTGZG400	9700	2982	3963	5-8	ZG3”	φ500	ZG4”	37

HTGZG500	10200	2980	3963	5-8	ZG3”	φ500	ZG4”	45

HTGZG600	10960	3180	4260	5-8	ZG4”	φ500	ZG5”	55

HTGZG700	10685	3382	4480	5-8	ZG4”	φ500	ZG5”	55

HTGZG800	10685	3782	4980	5-8	ZG5”	φ600	ZG6”	75

HTGZG900	11680	3600	4470	5-8	ZG5”	φ600	ZG6”	90

HTGZG1000	12450	3600	4470	5-8	ZG6”	φ750	ZG7”	90

HTGZG1100	13220	3600	4470	5-8	ZG6”	φ750	ZG7”	110

HTGZG1200	14310	3500	4206	5-8	ZG6”	φ750	ZG7”	132

HTGZG1300	15480	3746	4900	5-8	ZG6”	φ800	ZG7”	132

HTGZG1400	14315	3948	5790	5-8	ZG7”	φ800	ZG7”	132

HTGZG1500	14550	4160	6027	5-8	ZG7”	φ850	ZG7”	132

Common Material Types	Inlet Moisture (%)	Outlet Moisture	Drying Intensity (kg H₂O Evaporated / m²)	Energy Consumption (kJ / kg H₂O Evaporated)

Germ	55	3-5	2.5-3.3	1.25-1.45
Corn Fiber	60	10-12	3.8-4.5
Protein Powder	40	12-13	3.3-4.5
Distillers' Grains	65-70	10	5.0
Tuber Fiber	65	10-12	3.0-4.5

Brewers' Grains / Baijiu Distillers' Grains	65	10-12	4.9
Feed Carrier	16	10-12	4.2

Rapeseed	60	6-8	4.5
Fermented Porcine Blood Powder	35	10	4.4

Bone Meal	40	10	4.6
Fermented Feed	40	10	4.5
